S Series:

Pitch Size(mm): 1.667 / 1.86 / 2 / 2.5

Features:

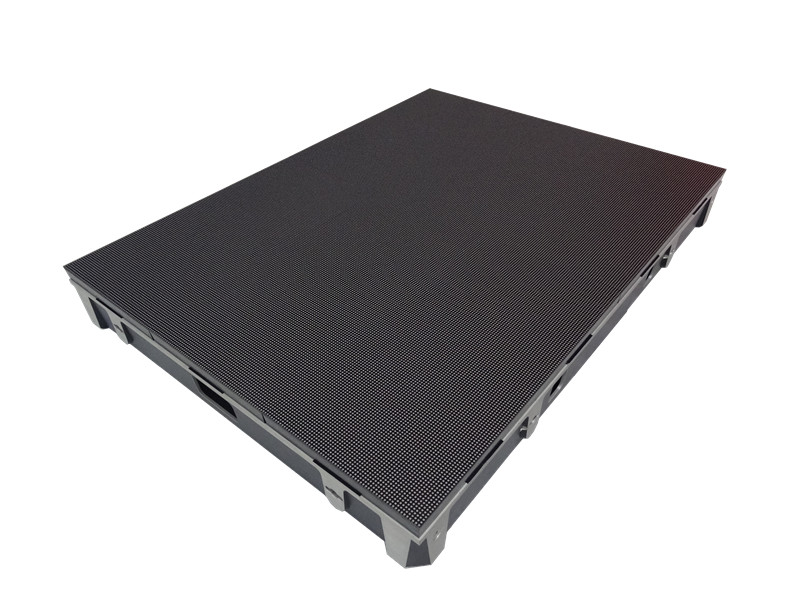

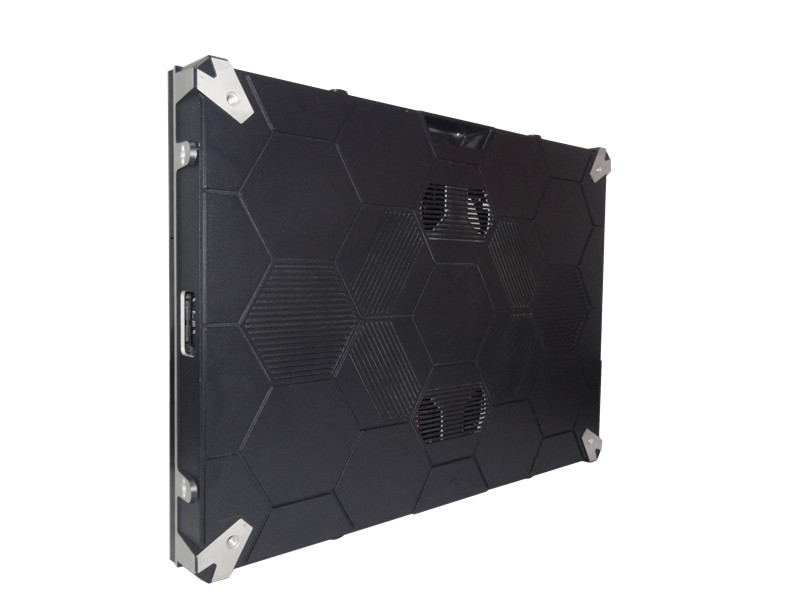

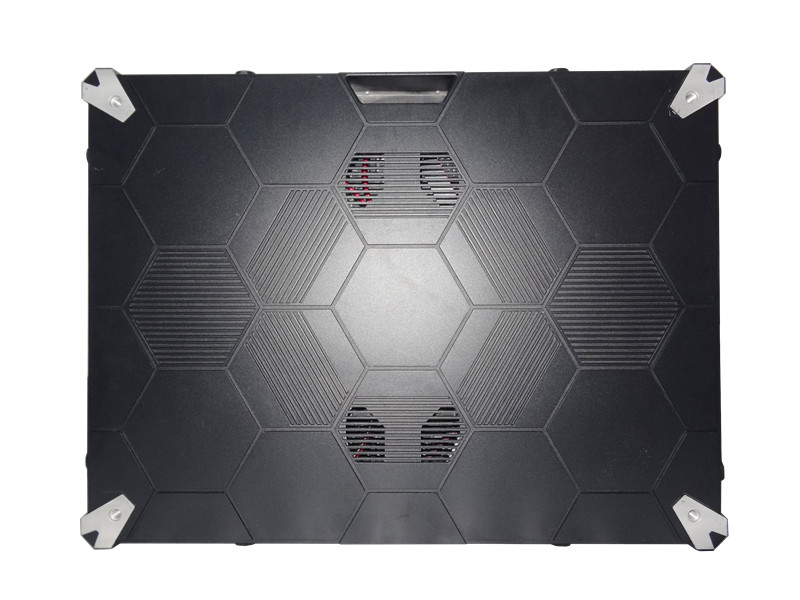

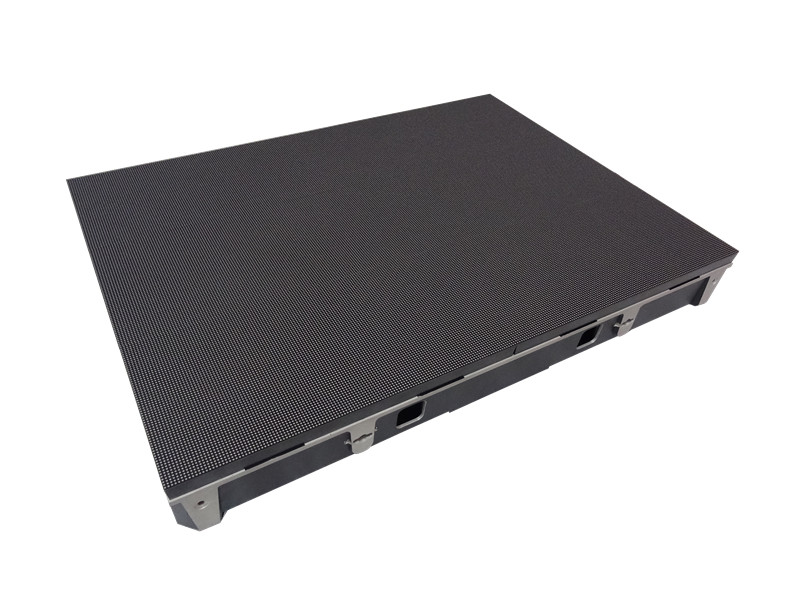

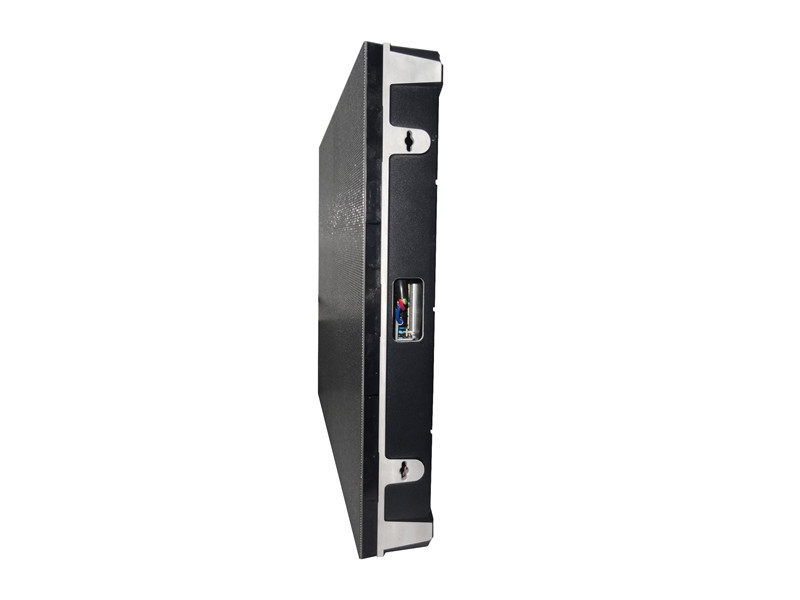

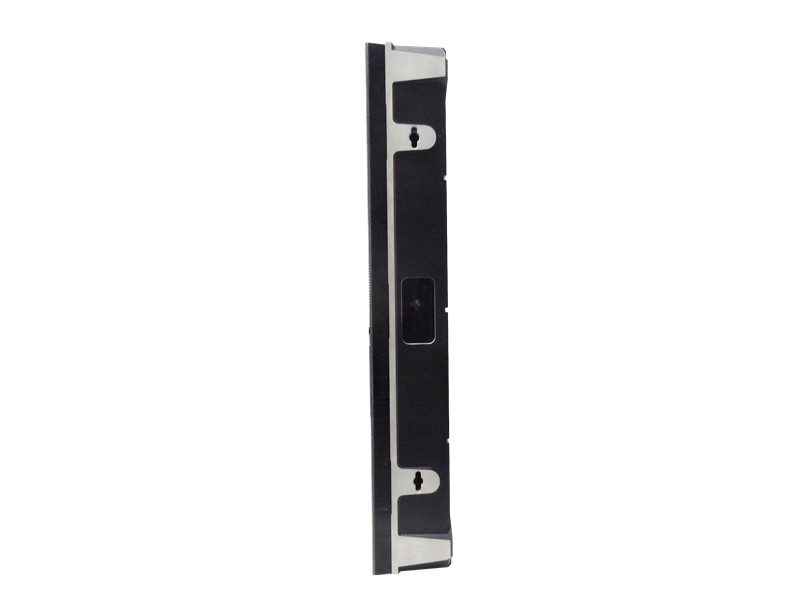

  1. LED module size is 320*160mm,matched with 640*480mm die-casting aluminum LED cabinet,which is compatible with S1.667 / S1.86 / S2 / S2.5 and so on.

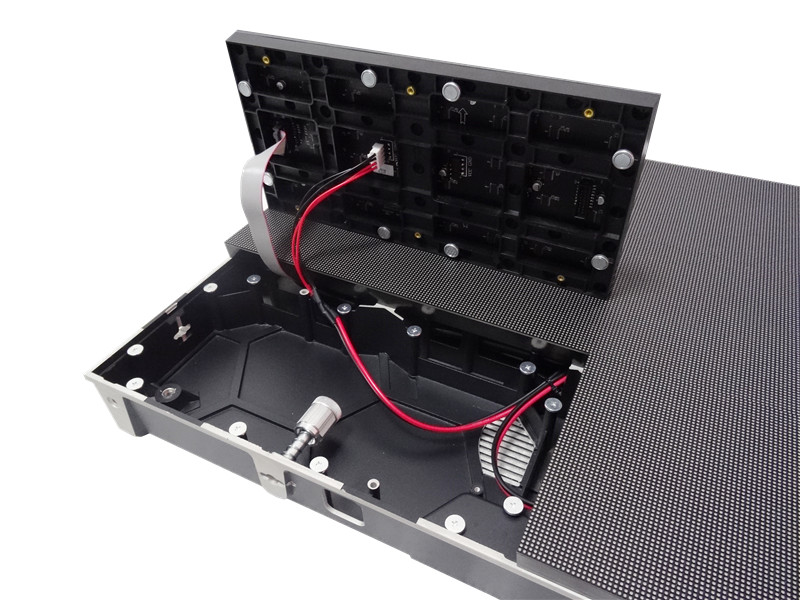

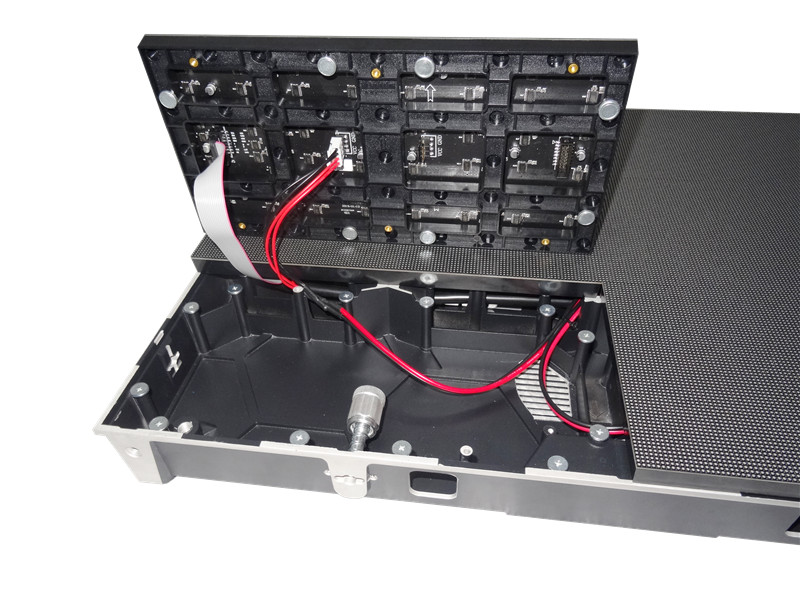

  2. Dual-maitenance.
  3. Installation way can be fixed or hanging type.
  4. Die-casting aluminum material,light-weight can small volume,seamless connection between cabinets,showing unique image or video effect.
  5. Constant current driving and line blanking solution,no first line dark effect,no”caterpillar”effect.

Parameters:

Product Series  S1.667 S1.86 S2 S2.5
Pixcel Pitch(mm) 1.667mm 1.86mm 2mm 2.5mm
LED Cabinet Size(mm) 640*480mm 640*480mm 640*480mm 640*480mm
Brightness(cd/s.qm) 400~900cd 400~900cd 400~900cd 400~900cd
Refresh Rate(Hz) 3840Hz 3840Hz 3840Hz 3840Hz
Click to Get More Details
Click to Get P2.5 Specification
Click to Get P1.86 Specification

Product Video:

Refered Cases:

P1.86 HD LED display

P1.86

Applied in Iran

P1.86 Indoor LED Display

27.648s.qm P1.86 Indoor LED Display Applied in Iran

small pixel LED screen

P3

Applied in UAE

P3 Indoor LED Display

18s.qm P2 Indoor LED Display Applied in UAE

P2 LED Display

P2

Applied in Saudi Arabia

P2 Indoor LED Display

12s.qm P2 Indoor LED Display Applied in Saudi Arabia
